Spline Shaft

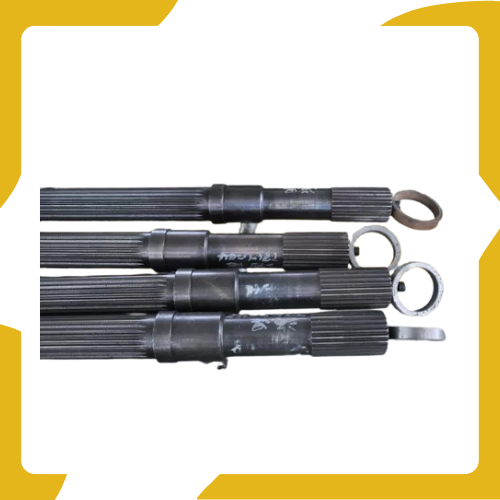

Inner Spline Twin Screw
An inner spline twin screw system uses shafts with internal splines that connect to externally splined screw elements. This design ensures precise torque transmission and easy assembly or replacement of elements. It provides strong mechanical engagement, allowing high load capacity and alignment accuracy. Commonly used in modular twin-screw extruders, it supports flexible configuration for various processing needs.

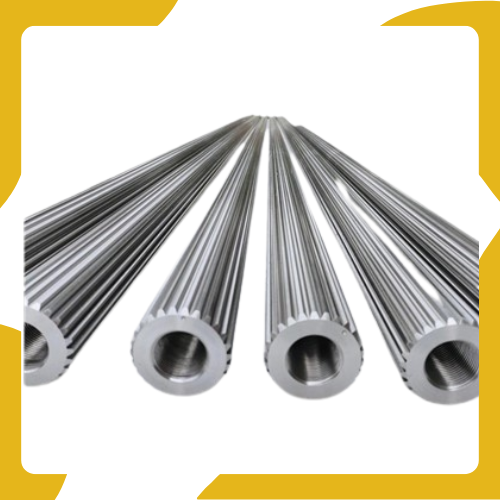

Screw Spline Shaft
A screw spline shaft is a precision-machined shaft with external or internal splines designed to transmit torque to screw elements in extrusion systems. The splines ensure secure, non-slip connections and allow easy assembly, disassembly, and reconfiguration. Made from high-strength, wear-resistant materials, it withstands high loads and rotational forces.It’s widely used in twin-screw extruders for reliable and efficient power transmission.

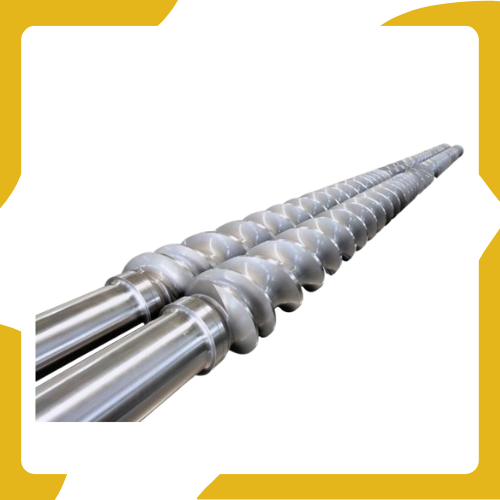

Extruder Screw Shaft
An extruder screw shaft is a central rotating component in an extruder that drives the screw elements to process materials. It transmits torque from the motor and supports the screw flights that convey, melt, and mix the material. Made from high-strength, wear-resistant steel, it withstands high pressure and temperature.The design and quality of the shaft are critical for efficient and consistent extrusion performance.

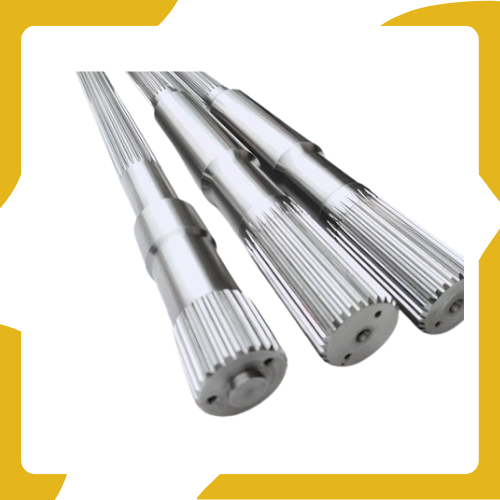

Screw shaft in Parallel co-rotating twin
In a parallel co-rotating twin-screw extruder, the screw shafts rotate in the same direction and are housed in parallel, intermeshing barrels. The screw shafts are synchronized to avoid contact while ensuring efficient mixing, conveying, and shearing of material.

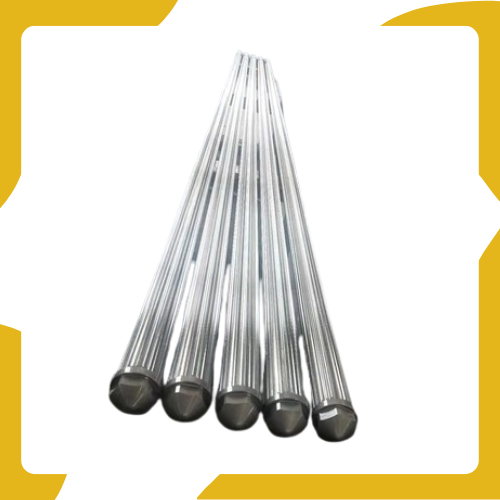

Inner Spline Twin Screw Extruder
An inner spline twin-screw extruder features screw shafts with internal splines that connect to externally splined screw elements. This modular design allows for flexible configuration and easy replacement of worn elements. The splined connection ensures precise torque transmission and alignment between components. It’s widely used in high-performance compounding .
High Quality Spline Shaft
A high-quality spline shaft is a precision-engineered component designed to transmit torque smoothly through interlocking grooves or teeth. Made from durable, high-strength materials like alloy or hardened steel, it offers excellent wear resistance and long service life. Accurate machining ensures tight tolerances for reliable performance in high-load applications. These shafts are commonly used in gearboxes, extruders, and other power transmission systems.
