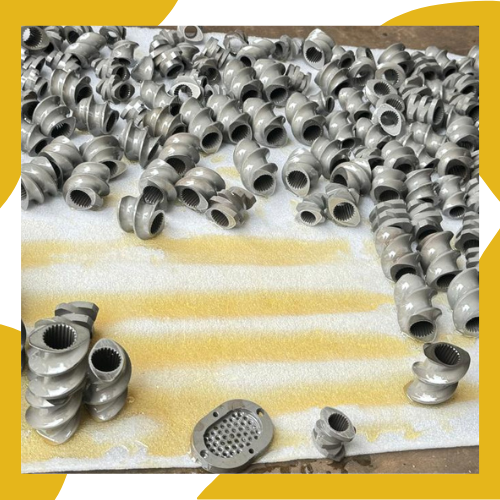

Screw Elements
Precision Screw Elements Manufacturer for Twin Screw Extruders
Unity Engineering Works is manufacture & supply various types of screw element specifically designed for co-rotating twin screw extruders. Our elements are crafted to optimize material handling, mixing, shearing, melting, and devolatilization across various applications — ensuring maximum performance and process control.
Whether you’re in polymer compounding, masterbatch, WPC, or engineered plastics, our Screw elements for twin screw extruder offer excellent wear resistance, dimensional accuracy, and compatibility with all leading twin-screw machines.
Types of Twin Screw Elements We Manufacture
As we are a trusted screw elements supplier and exporter in India, serving global industries with precision-engineered solutions.

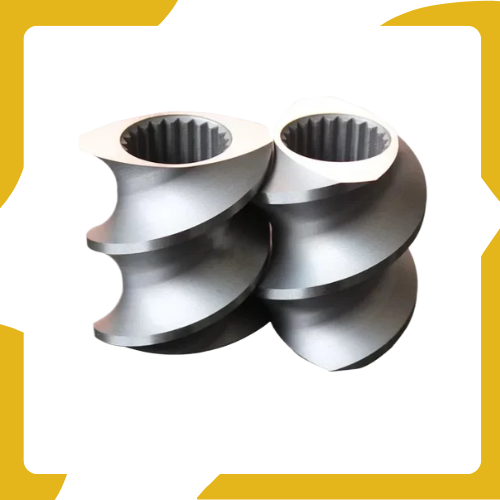

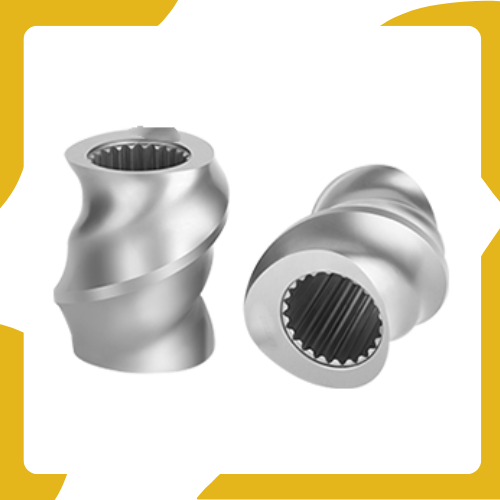

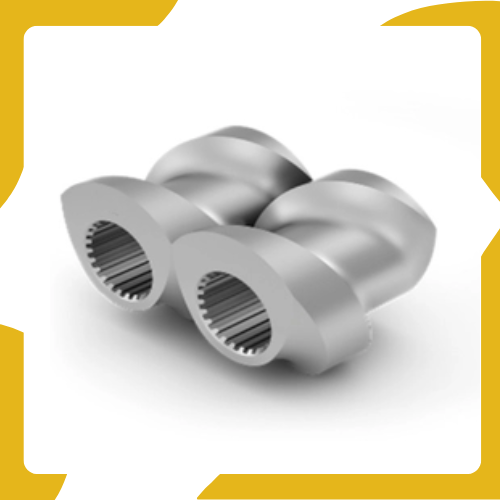

CONVEYING ELEMENT, SINGLE-LOBE
Single lobe conveying elements. because of the wide tip, exhibit a better forced feeding behavior com- pared to two-lobed elements. These elements build up pressure with less energy input & often exercise a sealing function toward the gearbox at the beginning of the screw.

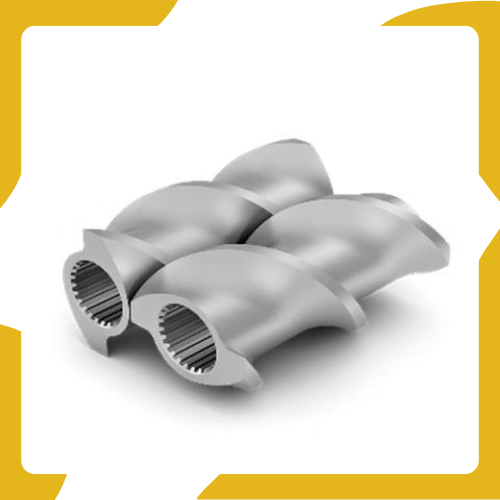

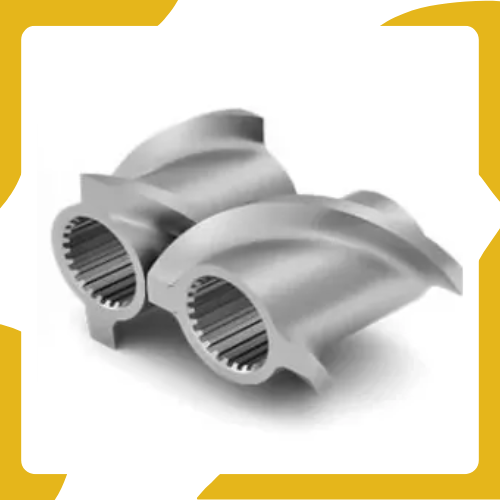

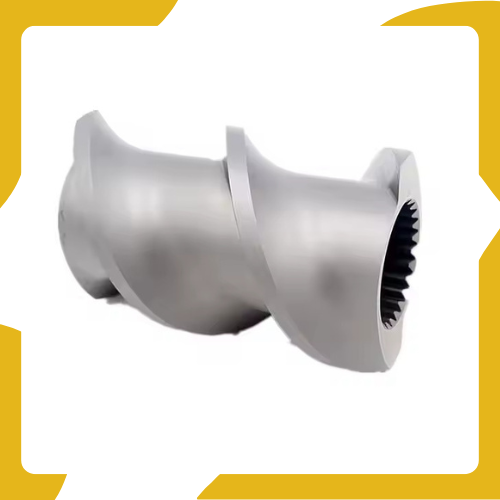

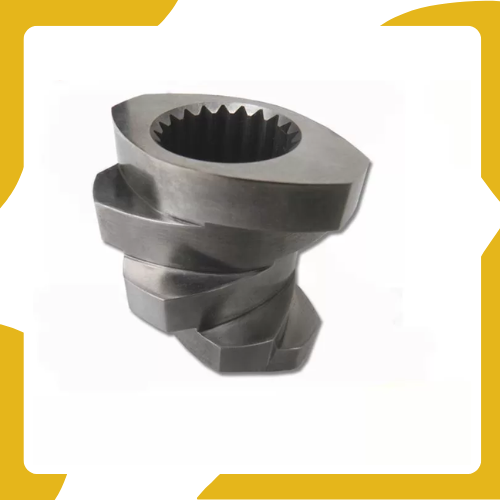

CONVEYING ELEMENT SE YY
Conveying element with single-lobe design where YY represents the tip width preferably reduced to the width of the bilobed screws. Is usually employed for relative large pitches in zones where much free conveying volume is required, that is, in the intake area or the area of side feeders and degassing openings.

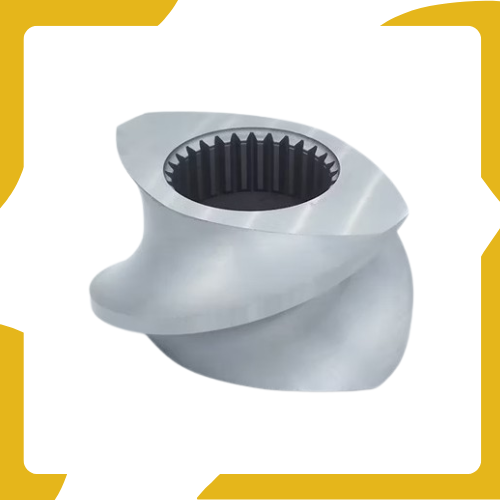

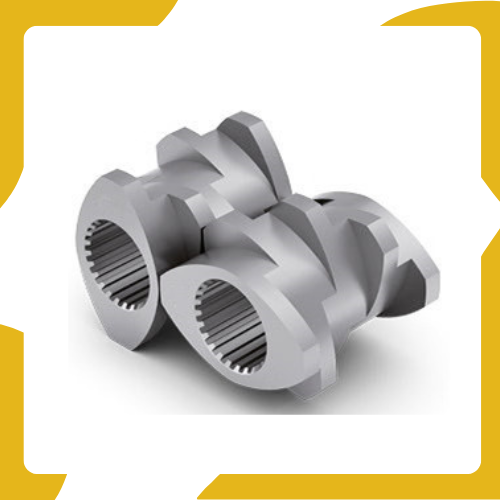

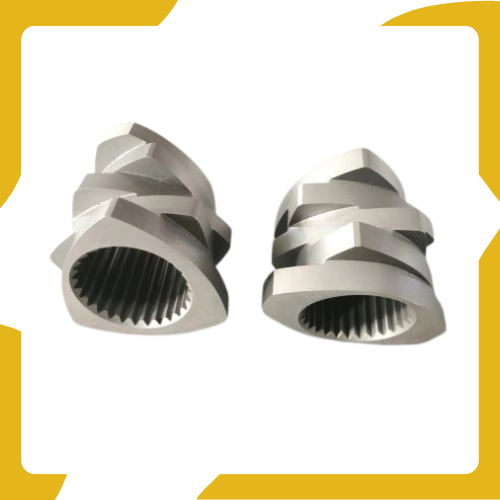

TRANSITION ELEMENT, SE12
These transaction pieces create a continuous transaction between single-lobe elements of the type SEA YY to two- lobed sealing problem elements without dead spots in which product may become deposited. The Transition Element SE12 is typically used in twin-screw extruders to facilitate the smooth changeover .

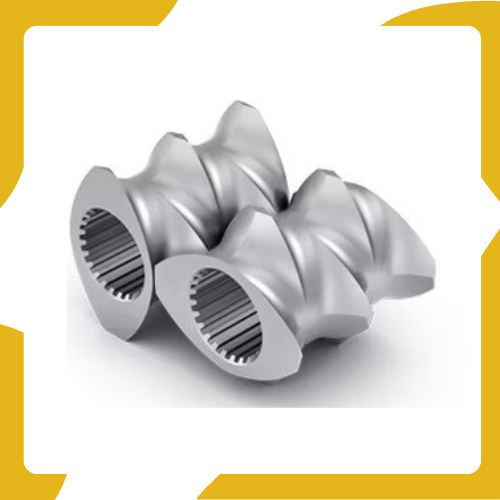

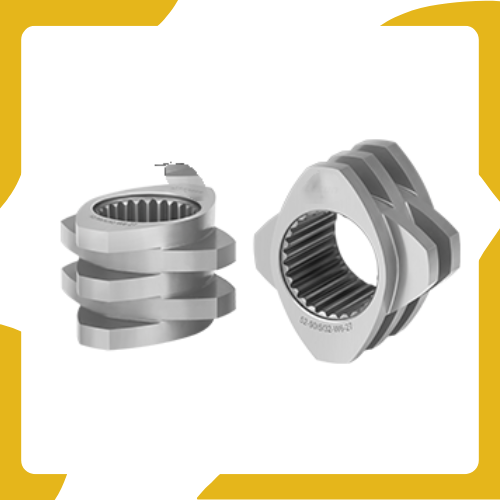

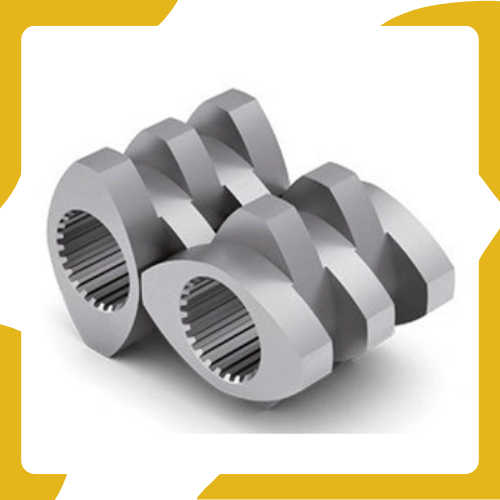

CONVEYING ELEMENT SKK
Two-lobed conveying element with two-sided pushing height at relatively large. pitch. This creates a large free conveying volume at simultaneously quite favourable blank angles. These elements can also pull in large volume particles with low density. The Conveying Element SKK is designed for efficient material transport.

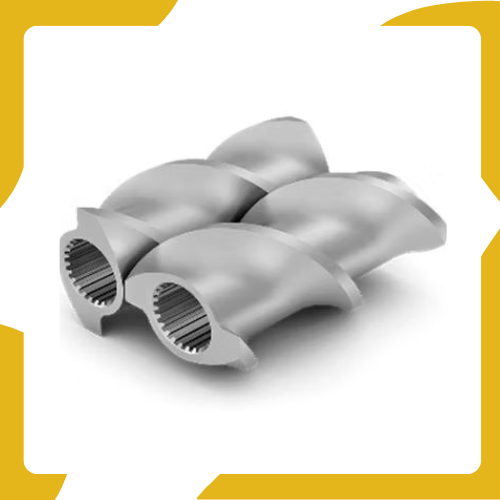

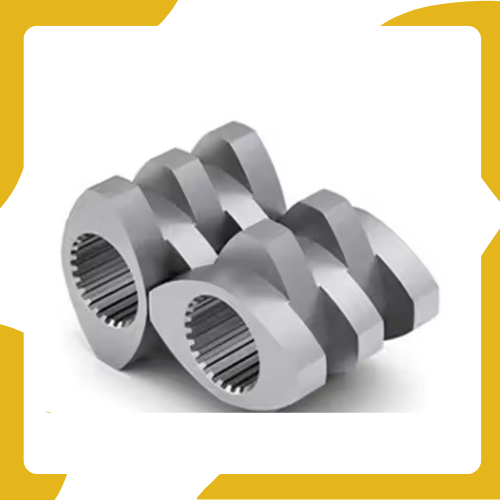

PUSHING FLIGHT ELELMENT, BI-LOBED
Conveying elements in bi-lobed design of the type SK with relatively large pitch where the active, that is the pushing hight features a pushing adge. These elements exhibit a relatively large free volume where the passive hights are cleaned by the nei- bouring elements. The fitting transation pieces have the designation SKN.
Looking For high-performance screw elements Supplier for your twin screw extruder?
Unity Engineering Works is an Ahmedabad based leading Manufacturer, Exporter & Supplier of all Types of Screw Elements. Contact for getting screw element at best price in India
